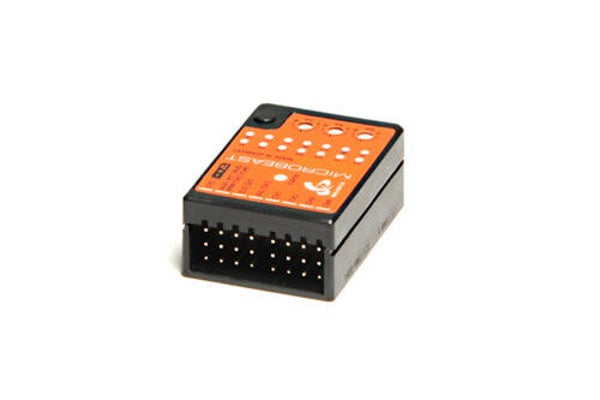

MICROBEAST ULTRA

The MICROBEAST ULTRA is the quintessence of more than 10 years of development and expertise in stabilization systems for RC helicopters. It combines all the features of the previous BEASTX systems and is ready for the future with a modern ARM Cortex MPU with even more computing power and storage capacity.


What MICROBEAST ULTRA can do
MICROBEAST ULTRA is a control and stabilization system for RC model helicopters. The helicopter is stabilized by the integrated gyro elements on all three axis, so that it only follows the pilot's control commands. Almost all remote control systems on the market are supported and due to the integrated update option, new systems can be added afterwards. Also the system can be upgraded by paid software updates to include additional useful functions. A telemetry upgrade allows MICROBEAST ULTRA to act as an interface between various sensor systems and remote control standards. With AttitudeControl we offer additional position stabilization and rescue assitance for flight training and beginner training. Bank switching allows the system to be optimally adapted to the requirements of the pilot by changing parameters in real time during flight.
The system can be configured extensively using the StudioX app, which is available for almost all platforms (requires additional USB or Bluetooth interface). If you like it very "old school", you can also do without a smartphone and additional interface. As with the early MICROBEAST systems, most functions can be set up using nothing else than a button on the device, the LED display and your remote control system.


Technical specification
• wide input voltage range from 4 to 9 Volts
• supports nearly all types of radio systems with conventional receiver wiring as well as lots of different serial signal receivers like SBUS, XBUS, EXBUS, iBus, UDI, SRXL, SRXL2, FRSky F.Port, SPPM, SUMD, Spektrum/JR/ALIGN remote satelites
• preset swash plate mixing for mCCPM and 90, 120, 140 eCCPM + fully customizable swash mixing with up to 4 swash plate servos and virtual phasing for scale helicopters
• swash plate servo update rate with up to 300Hz
• integrated tail gyro with torque precompensation ("RevoMix") supports all types of rudder servos with 760, 960 and 1500(1520)µs pulse width and up to 560Hz update rate
• integrated head speed governor for electric and nitro/gas driven helicopters (requires rpm sensor pickup or esc with rpm signal output)


Additional features
• AttitudeControl for recue bailout or constant leveling
• Bank Switching which allows to change between different parameter presets in flight to serve different flight conditions or flying styles
• Telemetry which transforms your MICROBEAST ULTRA into a hub for processing incoming and outgoing telemetry data
• If you like, you can directly get the "ProEdition" upgrade. This unlocks all features at once at a fair pricing.


Info
• MICROBEAST ULTRA is the successor of MICROBEAST PLUS
• The functions are identical. The hardware has been improved with a new microcontroller
• This will enable further functional expansions in future
• A conversion from Plus to Ultra is not possible (hardware-related)!
• Currently there is no difference in software and functions
• Future firmware updates may only be available for the Ultra!

Content

• MICROBEAST ULTRA flybarless unit
• All the wires to connect your receiver to the system (wire length 150mm)
• SRXL2 adaptor
• Telemetry adaptor
• 3M gyro pads
• Plastic tool for adjusting the gain dials
• Printed quickstart manual
• BEASTX sticker set
